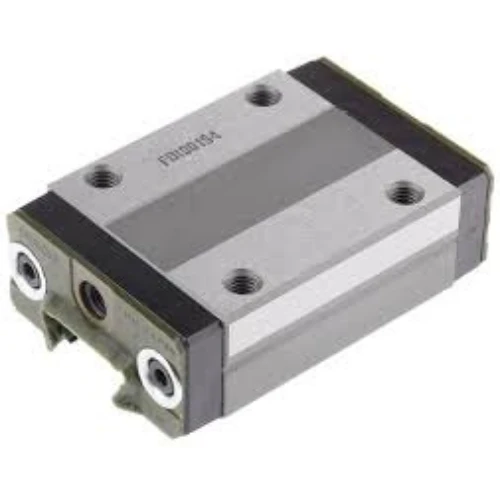

The McLease LINEMOTION PRO: Precision Linear Guide Block is the intelligent carriage that enables smooth, precise, and virtually frictionless movement along your CNC machine's linear guide rails. Your machine's gantry, cutting head, or other moving parts are securely mounted on top of these blocks.

What it is & How it Works (Engineering Principle):

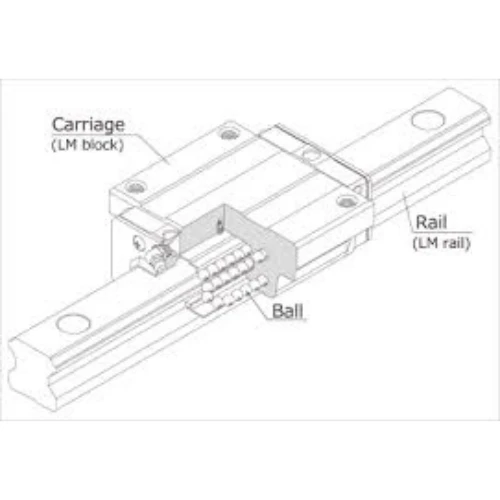

This is the sliding component that contains precision-engineered recirculating ball or roller bearings. These bearings allow the block to glide effortlessly along the precisely machined grooves (raceways) of a matching Linear Guide Rail (sold separately). This system minimizes friction, supports heavy loads, and ensures your machine maintains accurate positioning for perfect cuts.

Use & Application:

McLease LINEMOTION PRO Blocks are essential components for any CNC metal cutting machine (Fiber Laser, Plasma, OxyFuel) and welding automation system. They provide the highly accurate and stable sliding mechanism for your machine's X, Y, and Z axes. Typically, 2 to 4 blocks are used per rail, depending on rigidity requirements.

Choosing Your Block: Key Features:

• Type (Block Series): Must match your rail's series (e.g., HIWIN HG, THK HSR, PMI MSA/MSR).

• Standard Block (CA Series / Square Block): Most common, offers balanced load capacity.

• Flange Block (CC/HA/HC Series / Wider Base): Provides more mounting options and better load distribution, often preferred for enhanced stability.

• Size (Profile Width): Must match your rail's width (e.g., 25mm, 30mm, 45mm).

• Precision Grade: Must match your rail's grade (e.g., Normal, High, Precision, Super Precision).

Brief Troubleshooting & Maintenance:

• Rough Movement/Sticking: Check for proper lubrication, contamination of raceways, or damage to the block.

• Excessive Noise: Often indicates insufficient or contaminated lubricant, or potential wear.

• Maintenance: Regular and proper lubrication with recommended grease (via grease nipple on the block) is crucial for longevity and performance. Keep the block and rail surface clean.

Warranties:

All McLease LINEMOTION PRO Blocks come with the standard manufacturer's warranty (typically 12-24 months).

Crucial Compatibility Note: These blocks must be paired with matching Linear Guide Rails from the same brand and series (e.g., HIWIN HGH25CA Block needs a HIWIN HGR25 Rail). We highly recommend purchasing both your blocks and matching rails from McLease to ensure perfect compatibility and optimal performance.

Outright Sale Prices (Per Piece):

A. Mid-Range (Good Quality Indian/Chinese Brands - e.g., TBI, SBC equivalent)

• Block (e.g., TBI/SBC 25mm Block): INR 1,344/- per piece

B. Standard Premium (Popular Taiwan Brands - e.g., HIWIN HG Series, PMI MSA/MSR Series)

• Block (e.g., HIWIN HGH25CA/PMI MSA25CA - 25mm Block): INR 1,800/- per piece

• Block (e.g., HIWIN HGH30CA/PMI MSA30CA - 30mm Block): INR 2,400/- per piece

C. High-End Premium (Japanese/European Brands - e.g., THK HSR Series, Bosch Rexroth)

• Block (e.g., THK HSR35LR/Bosch Rexroth 35mm Block): INR 10,200/- per piece

Why Buy Your Linear Guide Rails & Blocks Online on www.mclease.com?

Ensure Your Machine's Unwavering Precision – Effortlessly!

Precision linear guide systems are fundamental to your CNC machine's accuracy and longevity. While you could buy directly from a supplier, McLease.com offers a curated selection and unique advantages that ensure you get perfectly matched components and reliable performance.

• Perfectly Matched Kits Ensured: When you choose McLease, we simplify the complexity. We ensure you get matching rails and blocks from the same brand and series, crucial for optimal performance, minimizing friction, and preventing costly compatibility issues.

• Curated & Compatible Selection: We've streamlined your choice! Our LINEMOTION PRO systems are carefully selected from reputable brands (HIWIN, PMI, THK, Rexroth, etc.) known for their quality and compatibility with various CNC machine designs.

• Competitive Pricing: Access high-quality linear motion components at excellent prices, ensuring optimal value for your investment.

• Seamless Online Purchase: Easily browse, compare, and order your linear guides and blocks from anywhere, anytime, with our user-friendly online platform.

• Manufacturer's Warranty: All LINEMOTION PRO units come with the full manufacturer's warranty, giving you direct assurance from the original maker.

• Expert Guidance (Through Service): While this is an outright sale, our deep understanding of machine components ensures you get the right advice on selection for your machine's load capacity, rigidity, and precision needs.

• Variety of Payment Modes: Enjoy ultimate flexibility! Pay using Credit/Debit Cards, UPI, Online/Offline Bank Transfers, and even Cash on Delivery (COD) for convenient purchase.

Ensure your machine moves with unparalleled precision – Upgrade to McLease LINEMOTION PRO today!

Add the McLease LINEMOTION PRO (Rails & Blocks) to your cart NOW!
