McLease: Water-Cooled Mechanized Plasma Torch Assembly

Upgrade your manual plasma cutter for mechanized precision. This water-cooled torch assembly (6m) is ideal for automated cutting systems, offering enhanced performance and durability. Outright purchase with next-day shipping.

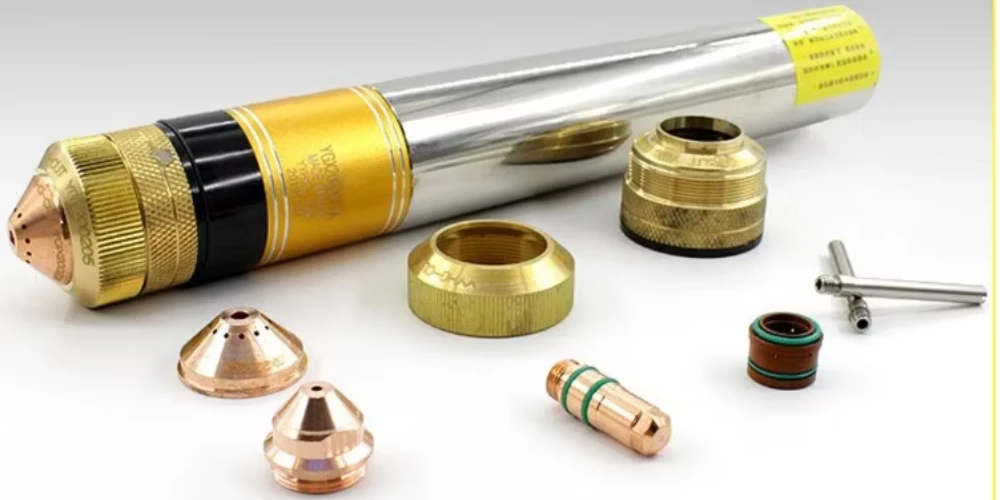

The Core of Automated Precision: Water-Cooled Mechanized Plasma Torch Assembly

Elevate your plasma cutting operations from manual dexterity to mechanized precision with the Water-Cooled Mechanized Plasma Torch Assembly. Designed specifically for automated cutting systems, this essential accessory ensures superior performance, extended consumable life, and consistent cut quality even during prolonged, high-duty cycle operations.

What is a Water-Cooled Mechanized Plasma Torch Assembly?

This is a specialized plasma cutting torch designed to be mounted on a mechanized system (like a motorized trolley or a CNC gantry, as an accessory to your manual machine). Its key feature is water cooling, which circulates coolant through the torch head. This active cooling rapidly dissipates the intense heat generated during plasma cutting, offering several critical advantages:

• Extended Consumable Life: By keeping the electrode and nozzle cooler, water cooling significantly prolongs the lifespan of these critical wear parts, reducing operational costs and downtime for replacements.

• Improved Cut Quality: A cooler torch maintains more stable arc characteristics, leading to cleaner, more consistent cuts, especially on thicker materials or during longer cutting sessions.

• Higher Duty Cycle: The enhanced cooling allows the torch to operate continuously for longer periods without overheating, increasing your machine's productivity.

• Designed for Automation: Its robust construction and precise form factor make it ideal for secure and stable mounting on motorized trolleys (like the "Cut Master" offered for HyCUT machines) or other mechanized setups, enabling straight-line, circle, or contour cutting with greater accuracy than freehand manual operation.

Why Choose This Torch? Precision, Durability, and Efficiency

This water-cooled mechanized plasma torch assembly is a crucial upgrade for workshops looking to enhance their cutting capabilities without investing in a full CNC system. It's the perfect complement to your Technocrats HyCUT machine, transforming it into a more versatile and precise cutting tool for repeatable tasks.

Why Purchase from McLease.com? Speed, Security & Support

When you choose to purchase your Water-Cooled Mechanized Plasma Torch Assembly from McLease.com, you benefit from our commitment to efficiency, security, and a streamlined purchasing experience.

• Express Delivery - Next-Day Shipping: For payments made via Bank Transfer or UPI, we guarantee next-day shipping of your order (subject to stock availability and payment realization before 2 PM IST). Get your essential accessory faster to minimize your downtime.

• Razorpay Buyer Protection: Your purchase is protected by Razorpay Buyer Protection, ensuring peace of mind for issues like non-delivery or defective products.

  • How it works: This program allows you to initiate claims for issues like non-delivery or product quality concerns. Razorpay, at its discretion, may provide a full reimbursement if the claim is eligible. This builds trust and reduces buyer risk.

• Trusted Source: McLease is your reliable online platform for industrial machinery and accessories, backed by Vula Technologies Pvt Ltd. We ensure you receive genuine, high-quality products.

• Convenience: Purchase 24/7 from anywhere in India through our user-friendly online shop.

Installation, Usage, and Troubleshooting Guidelines

Safety First: Always ensure your plasma cutting machine is turned OFF and unplugged before performing any installation or maintenance. Wear appropriate personal protective equipment (PPE), including welding gloves, safety glasses, and a welding helmet.

Mounting & Dismantling Guide:

1. Dismantling (if replacing existing torch):

   • Carefully disconnect the existing torch's power cable, gas hose, and (if applicable) coolant lines from the plasma power source or control box.

   • If mounted on a trolley, unclamp or unbolt the old torch.

2. Mounting (Water-Cooled Mechanized Torch):

   • Coolant Connection: Connect the water-cooled torch's inlet and outlet coolant lines to the appropriate ports on your plasma power source (if it has an integrated coolant system) or to an external water cooler/circulator unit. Ensure secure, leak-free connections.

   • Power & Gas Connections: Connect the main power cable and gas hose from the torch to the corresponding outputs on your plasma power source.

   • Mechanical Mounting: Securely clamp or bolt the torch assembly onto your mechanized trolley (e.g., Cut Master) or automated cutting system. Ensure it is rigid and aligned correctly for your cutting application. The 6-meter cable provides ample reach for most mechanized setups.

3. Post-Installation Check:

   • Coolant Flow: For water-cooled torches, verify that the coolant is circulating properly before striking an arc. Low or no coolant flow will damage the torch.

   • Air Pressure: Ensure the compressed air supply to the plasma machine is set to the recommended pressure.

   • Consumables: Install new, correct electrodes and nozzles according to the manufacturer's manual for your specific cutting parameters.

Usage Guideline:

1. Select Correct Consumables: Choose electrodes and nozzles based on the metal type, thickness, and desired cut quality.

2. Set Amperage & Speed: Adjust your plasma machine's amperage and the trolley's cutting speed according to the material and thickness.

3. Maintain Proper Torch Height: For mechanized cutting, consistent torch-to-work distance is crucial for cut quality and consumable life. Use guides or height control systems.

4. Optimal Air Pressure: Ensure clean, dry, and correctly pressurized air for the best performance.

5. Coolant Monitoring: Regularly check coolant levels and temperature to prevent overheating and torch damage.

Basic Troubleshooting:

• No Arc: Check power supply, air pressure, torch connections, and consumable seating. Ensure adequate coolant flow for water-cooled torches.

• Poor Cut Quality (excessive dross, wide kerf, bevel): Check consumables (worn out?), torch height (too high/low?), cutting speed (too fast/slow?), amperage (too low?), air pressure (incorrect?), and coolant flow.

• Torch Overheating: Immediately stop cutting. Check coolant circulation, coolant levels, and ensure proper air flow around the torch.

• Specifications: 6m heavy-duty cable, compatible with various plasma machine models (check amperage), efficient water circulation system, quick-disconnect fittings for coolant lines. Focus on high durability. Designed for smooth integration with motorized trolleys. Lightweight design for smoother mechanized movement, superior cooling channels for enhanced consumable life.

Important Note on Services & Warranty for This Accessory:

• No Leasing Option: This product is available only for direct purchase/outright sale. Leasing options (Zero Upfront, No CIBIL, Interest-Free Financing) are not applicable to this accessory.

• No Extended Service Benefits: As an accessory, this product is not eligible for McLease's 15-Year Service & Spares Assurance, AI-Powered Remote AMC (RAMC), Annual Maintenance Contracts (AMC), or Productivity Loss Insurance. These benefits are specific to main machine/power source leases.

• Manufacturer's Warranty: This torch assembly comes with the manufacturer's standard warranty (typically 12 months against manufacturing defects). All claims will be handled directly through the accessory's manufacturer as per their terms.
