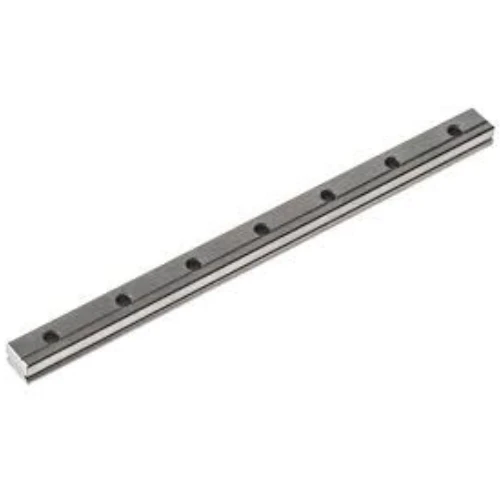

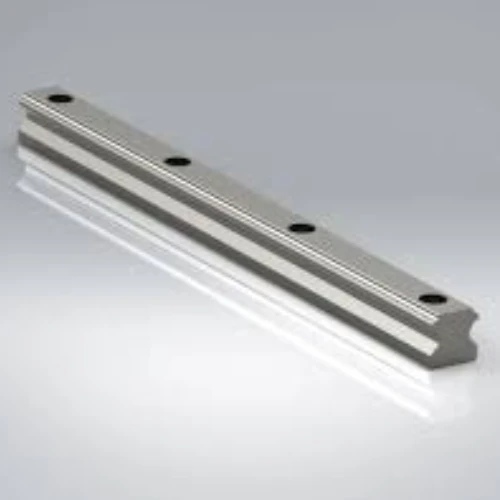

The McLease LINEMOTION PRO: Precision Linear Guide Rail is the sturdy metal track that guides the movement of your CNC machine's parts. Think of it as the highly accurate railway line on which your machine's cutting head or gantry precisely travels. It's built with specially machined grooves (raceways) that ensure perfectly straight and stable linear motion.

What it is & How it Works (Engineering Principle):

This is the long, rigid bar that forms the linear path. It works in conjunction with a matching "Linear Block" (sold separately) that slides along its raceways. This system ensures ultra-low friction, high accuracy, and the ability to support heavy loads without losing precision.

Use & Application:

McLease LINEMOTION PRO Rails are fundamental for any CNC metal cutting machine (Fiber Laser, Plasma, OxyFuel) and welding automation system. They provide the essential, precise linear movement for your machine's X, Y, and Z axes.

Planning Your Purchase: Typical Lengths Required:

The length you need depends on your machine's cutting area.

• For a 3000mm x 1500mm (10 ft x 5 ft) cutting bed: You'll typically need around 3 meters for the Y-axis and 1.5 meters for the X-axis (plus shorter Z-axis rails).

• For a 4000mm x 2000mm (13 ft x 6.5 ft) cutting bed: You'll typically need around 4 meters for the Y-axis and 2 meters for the X-axis (plus shorter Z-axis rails).

Choosing Your Rail: Key Features:

• Size (Profile Width): The width of the rail (e.g., 25mm, 30mm, 45mm). 30mm profile width is often preferred for CNC metal cutting for its rigidity and load capacity.

• Precision Grade: Defines the accuracy (e.g., Normal, High, Precision, Super Precision). For CNC, "Precision" or "Super Precision" is recommended.

• Brand: Choose from leading global brands like HIWIN, PMI, THK, Rexroth, INA, IKO, NSK, or reliable Indian/Chinese brands like TBI, SBC.

Brief Installation & Maintenance:

• Installation: Requires a clean environment, precise alignment, and proper bolting to your machine's frame.

• Maintenance: Keep rails clean from dust/chips. Ensure proper lubrication (managed by the blocks).

Warranties:

All McLease LINEMOTION PRO Rails come with the standard manufacturer's warranty (typically 12-24 months).

Crucial Compatibility Note: These rails must be paired with matching Linear Blocks from the same brand and series (e.g., HIWIN HGR25 Rail needs HIWIN HGH25CA Block). We highly recommend purchasing both your rails and matching blocks from McLease to ensure perfect compatibility and optimal performance.

Outright Sale Prices (Per Meter): (GST extra)

A. Mid-Range (Good Quality Indian/Chinese Brands - e.g., TBI, SBC equivalent)

• Rail (e.g., TBI/SBC 25mm Profile): INR 1,200/- per meter

B. Standard Premium (Popular Taiwan Brands - e.g., HIWIN HG Series, PMI MSA/MSR Series)

• Rail (e.g., HIWIN HGR25/PMI MSR25 - 25mm Profile): INR 1,400/- per meter

• Rail (e.g., HIWIN HGR30/PMI MSR30 - 30mm Profile): INR 1,800/- per meter

C. High-End Premium (Japanese/European Brands - e.g., THK HSR Series, Bosch Rexroth)

• Rail (e.g., THK HSR35/Bosch Rexroth 35mm Profile): INR 4,200/- per meter
