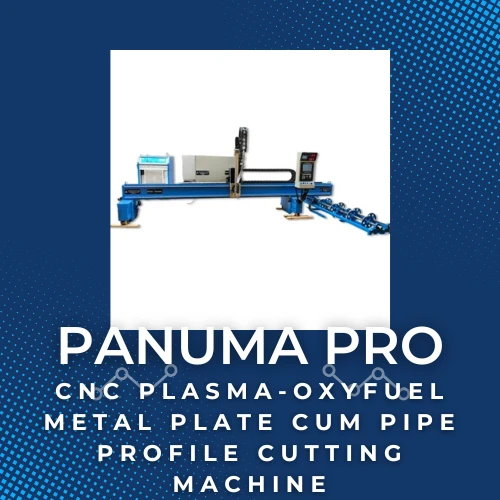

The McLease PANUMA PRO is a state-of-the-art CNC Metal Plate cum Pipe Profile Cutting Machine, proudly manufactured by Technocrats Plasma Systems Ltd., Mumbai, an industry pioneer with over 35 years of expertise. This robust gantry-type system comes standard with both Plasma and Oxy-Fuel torches for plate cutting, and includes an additional dedicated attachment for pipe profile cutting. Powered by our reliable HyCut Plasma Power Source, the PANUMA PRO offers unparalleled versatility and efficiency for precision cutting across a wide spectrum of metals, thicknesses, and shapes for both plates and pipes.
1. What is a CNC Metal Plate cum Pipe Profile Cutting Machine? This is an advanced automated system that integrates the capabilities of cutting flat metal plates and cylindrical pipes on a single machine. You program the desired shapes (profiles) for either plates or pipes into the computer, and the machine precisely controls the cutting torches to automatically cut them.
2. McLease PANUMA PRO: Machine Specifications
The PANUMA PRO is configured for high-performance and reliable operation for both plate and pipe cutting.
2.1. Core Machine Components:
Robust Gantry-Type Structure: A sturdy overhead structure that moves along the length of the cutting bed, carrying the cutting torches. Designed for high stability and vibration damping.
Integrated Plasma & Oxy-Fuel Torches: Standard dual torches for versatile cutting of medium-to-thick metals (Plasma) and very thick mild steel (Oxy-Fuel) on both plates and pipes.
HyCut Plasma Power Source: Our reliable, high-performance Plasma power source (available in 125A, 200A, 300A options) ensures stable arc and superior cut quality.
Intelligent CNC Control System: The machine's "brain" that translates digital designs into precise torch movements for both plate and pipe cutting.
Precision Motion System: High-performance AC Servo Motors, linear guide rails, and gear racks & pinions ensure smooth, accurate motion.
Cutting Bed (Plate Section): An integral part of the machine for flat sheets, including a robust frame and fume/slag management system.
Pipe Cutting Attachment (Dedicated Section): A separate, integrated section for pipes. Choose between robust chuck-based systems (for firm gripping and rotating) or roller-disc based systems (for versatile pipe support and rotation) as per your operational requirements.
2.2. Axes of Motion & Bevel Cutting:
Standard (3-Axis) Motion (Entry Range): X (longitudinal), Y (transverse), Z (vertical) for perpendicular cuts on both plates and pipes.
Advanced (4-Axis) Motion for Bevel Cutting (Mid Range - Includes Bevel as Standard): This configuration adds a rotary axis to the cutting torch, allowing it to tilt for angled cuts on both plates and pipes.
4th Axis: Typically a rotary axis (e.g., an "A" axis) that allows the torch to tilt to create bevels (chamfers), essential for weld joint preparation.
Premium (5-Axis) Motion for Complex Beveling (Premium Range - Includes Bevel & Complimentary Powder Marking): This top-tier configuration adds even more dexterity to the torch for both plate and pipe cutting.
5th Axis: Typically another rotary axis (e.g., a "B" axis) that allows the torch to rotate or tilt in a second plane, providing full 360-degree beveling capability for complex joint geometries on plates or pipes.
2.3. Intelligent Torch Control Features:
Initial Height Sensing (IHS): Auto-senses plate or pipe surface for correct torch starting height.
Arc Voltage Torch Height Control (THC - for Plasma): Real-time Z-axis adjustment for consistent plasma arc length on uneven plates/pipes.
Capacitive Auto Height Control (for Oxy-Fuel): Maintains precise torch distance from the plate/pipe surface.
Auto Igniter (for Oxy-Fuel): Automatically ignites the torch for safety and convenience.
2.4. Cutting Capabilities: Profiles, Metals & Thickness Ranges: The PANUMA PRO can cut any complex 2D profile from plates and various profiles from pipes.
Metals (for both Plate & Pipe): Primarily Mild Steel (MS), Carbon Steel, Stainless Steel (SS), Aluminum, and Galvanized Plates.
Plate Cutting Thickness Ranges (with standard 2 torches):
Plasma (HyCut): Piercing up to 25-30 mm MS; Edge Cutting up to 35-40 mm MS.
Oxy-Fuel: From 5 mm up to 150 mm+ MS.
Pipe Cutting Specifications:
Pipe Length Range: Minimum 750 mm to Maximum 6000 mm and beyond.
Pipe Diameter Range: Minimum 60 mm to Maximum 500 mm.
Pipe Wall Thickness Range: Typically 4 mm to 14 mm (can vary based on power source).
Pipe Profiles: Capable of cutting various pipe profiles, including straight cuts, holes, slots, saddle cuts, miters, branch connections, and more, all precisely controlled.
Powder Marking (Complimentary with Premium Range, Optional for others): The machine can be equipped with a powder marking system (separate attachment) for marking lines, part numbers, or text on the metal surface (plate only) prior to cutting.
2.5. How the Machine Defines Its Path & Cuts:
Design & Input: You design your parts using CAD software (e.g., DXF, DWG files) and input them into the system. For pipes, specialized pipe unfolding software is used to convert 3D pipe designs into flat cutting paths. Interfaces include Ethernet (for high-speed data), USB ports (for program transfer), and some systems may offer Bluetooth.
Nesting: Specialized nesting software (like McLease NESTPRO) intelligently arranges parts on the digital sheet or pipe surface to minimize waste.
G-code Generation: The nesting/pipe unfolding software converts layouts into machine instructions (G-code).
Motion Execution: The CNC Controller Unit (the "brain") commands high-performance AC Servo Motors and drives to move the gantry and torch(es) along precision linear guides and gear racks & pinions, or precisely rotate the pipe via the chuck/roller system, following the exact programmed path.
Cutting: As the torch moves, the Plasma arc or Oxy-Fuel flame cuts through the metal, guided by precise motion and continuous height control.
2.6. Nesting Software & Material Savings: Best nesting software (like McLease NESTPRO) can dramatically save material:
Minimum Distance: Plasma and Oxy-Fuel need minimum distances between parts due to wider kerf and heat. Laser (for comparison) allows tighter nesting and common line cutting due to a finer beam.
Overall Savings: By optimizing layouts for both plates and pipes, good nesting and pipe unfolding software can significantly reduce raw material waste.
The McLease PANUMA PRO offers profound operational advantages:
Unmatched Versatility (Plate + Pipe): A single machine handles both flat plates and cylindrical pipes, reducing investment in separate machines.
Superior Quality & Accuracy: CNC control, precise motion, and intelligent torch features ensure consistent, high-quality cuts on both formats.
Increased Productivity: High cutting speeds and automated processes reduce production time for diverse job types.
Reduced Rework & Material Waste: Precise cuts minimize errors, and advanced nesting/unfolding maximizes material utilization.
Cost-Effective Thick Cutting: Oxy-Fuel provides an economical solution for very thick mild steel (both plate and pipe).
Optional Beveling: Reduces/eliminates secondary machining for weld preparation on both plates and pipes.
Enhanced Safety: Automated operations reduce operator exposure to hazards.
Understanding the economics helps you choose the right tool for the right job:
Precision Cutting, Powerful Performance – With Unbeatable Support!
Acquiring a high-performance CNC Plasma-OxyFuel Plate cum Pipe cutting machine is a pivotal investment. While you could buy directly from the manufacturer, McLease.com offers an unparalleled ecosystem of benefits that no individual manufacturer or supplier can match. We ensure your purchase is not only technologically superior but also financially savvy and comprehensively supported throughout its entire lifecycle.
Manufactured by Technocrats Plasma Systems Ltd., Mumbai: Benefit from over 35 years of engineering excellence from a trusted Indian manufacturer, ensuring robust and reliable machinery with our reliable HyCut Plasma Power Source.
Outright Purchase Advantage (15% Discount): If you choose to buy your PANUMA PRO outright, you receive an exclusive 15% discount on the machine's selling price, offering significant immediate savings.
Zero Payment to Book! (Only 10% Refundable Security Deposit): Secure your PANUMA PRO today for just 10% of the calculated monthly lease amount as a one-time order booking security deposit. This nominal amount confirms your serious intent, allowing us to prioritize your order. This deposit is 100% refundable if leasing documentation is not finalized, or if your order is cancelled by McLease. It's truly a risk-free commitment to explore.
Unmatched 15-Year Service & Spares Assurance: Beyond standard manufacturer warranties, McLease guarantees service and genuine spare parts availability for an incredible 15 years! This commitment ensures your machine performs reliably for its entire extended lifespan, minimizing unexpected costs and maximizing uptime.
Flexible Finance & Easy Leasing with Buyback: Don't tie up your valuable capital! Opt for our flexible leasing options tailored to your business needs, often without rigid CIBIL checks. Our models include buy-back or sell-back options at the end of the lease, giving you ultimate flexibility to upgrade or return.
AI-Powered Remote Support (RAMC) & AMC: Minimize costly downtime! Your machine comes with access to McLease's innovative Remote Annual Maintenance Contracts (RAMC) for AI-driven preventive maintenance insights and expert remote troubleshooting, often resolving issues without a physical visit.
Productivity Loss Insurance: Gain added peace of mind with insurance coverage against productivity loss due to machine breakdowns.
Seamless Online Support Hub: Manage everything from your computer or mobile! Easily purchase all genuine spares, consumables (like plasma electrodes, nozzles, oxy-fuel tips, cutting gases), and accessories directly from McLease.com. Raise service requests, track engineer movement, and manage your machine's lifecycle digitally.
Variety of Payment Modes: Enjoy ultimate flexibility! Pay your initial security deposit and subsequent monthly lease amounts using Pay Later schemes, Credit/Debit Cards, UPI, Online/Offline Bank Transfers, and even Cash on Dispatch (COD) for the machine itself (terms apply).
Complete Ecosystem Advantage: By choosing McLease, you gain access to a holistic ecosystem that supports not just this machine, but potentially your entire fabrication operation, offering comprehensive financing, maintenance, and supply chain solutions.
Optional Bundling of Essential Accessories: For complete peace of mind and simplified procurement, you can bundle essential ancillary systems like Fume Extraction Systems/Dust Collectors, Air Compressor & Air Dryer Units, and Power Conditioning Units (Online UPS / Voltage Stabilizer / Isolation Transformer) directly with your machine order, ensuring optimal machine health and operator safety from day one.
All prices are indicative and subject to final configuration, prevailing market conditions, and GST (Goods and Services Tax) as applicable.
Pricing Notes:
McLease Selling Price (Basis for Lease): This is the price point used for calculating your monthly lease amount.
Outright Purchase Price (15% Discount): This is the discounted price if you choose to buy the machine upfront.
Monthly Lease Amount: Calculated over 36 months.
Order Booking Security Deposit: 10% of the monthly lease amount, 100% refundable as per terms.
Variant A: Entry Range (3-Axis Plate + Pipe, No Bevel - Cost-Effective Components - e.g., Leadshine servos, TBI linear guides, F2300A controller)
Variant B: Mid-Range (4-Axis Plate + Pipe, INCLUDES Bevel - Reputable Chinese/Taiwanese Components - e.g., Delta servos, HIWIN linear guides, Friendess controller)
Variant C: Premium Range (5-Axis Plate + Pipe, INCLUDES Complimentary Powder Marking - Global Brands - e.g., Yaskawa/Siemens servos, THK/Rexroth guides, Beckhoff/Fanuc controller for core CNC)
(Prices are indicative estimates for a complete machine. Actual prices vary significantly based on exact component models, specific features, and prevailing market conditions. GST extra as applicable.)
Maintaining optimal performance requires high-quality consumables and readily available spares. McLease provides easy online access to all your needs:
Plasma Consumables: Electrodes, Nozzles, Swirl Rings, Shield Caps.
Oxy-Fuel Consumables: Cutting Nozzles (Tips), Heating Nozzles.
Gases: Oxygen (for Plasma/Oxy-Fuel), Fuel Gas (Acetylene/Propane for Oxy-Fuel), Compressed Air/Nitrogen (for Plasma assist). (McLease offers Gas Regulators & Hoses).
General Machine Spares: Linear Guides, Pinions, Gearboxes, Servo Motors/Drives, Ball Screws (for Z-axis), CNC Controller Units, Sensors, Relays.
Accessories: Nesting Software Licenses, CAD/CAM Software Licenses, Fume Extraction Systems/Filters, Air Compressor & Dryer Units, Water Chiller Units, Power Conditioning Units (UPS, Stabilizer, Transformer).
How to Buy Outright & On Credit/Flexible Pay Terms:
Outright Purchase (for the machine):
Option A: 50% Advance with Bank Guarantee: Pay 50% advance (McLease provides BG for non-delivery), remaining 50% against dispatch.
Option B: Zero Advance with 100% Customer Bank Guarantee: Provide 100% BG, pay 100% against dispatch.
Buying Spares, Consumables & Accessories on Credit / Flexible Pay Terms:
For our corporate customers, McLease offers a unique facility to "top-up your digital wallet" with a credit limit of up to INR 5 Lakh.
You can instantly consume this credit limit by purchasing spares, consumables, and accessories directly from the McLease.com portal or mobile app.
You do not have to pay immediately! This amount can be repaid in a monthly billing cycle or as per a mutually agreed credit limit and credit period. This significantly streamlines your procurement and cash flow for recurring operational needs.
Successful installation and optimal performance require careful planning and preparation from the client's side.
8.1. Facility Requirements:
Required Floor Space: Approx. 7-10 meters (Length) x 4-6 meters (Width) clear space for the plate cutting bed plus the separate pipe cutting section, including space for machine travel, material handling, and access.
Height Clearance: Sufficient overhead clearance for the gantry and torch movement (typically 3-4 meters minimum).
8.2. Utilities (To be arranged by Customer):
Electrical Power Supply: Adequate 3-Phase, 415V AC, 50 Hz power supply with appropriate main circuit breakers and robust earthing. For configurations up to 300A Plasma, a connected load capacity of 30-80 kVA is typically required.
Industrial Gases: Availability of all necessary cutting gases (Oxygen, Fuel Gas for Oxy-Fuel; Compressed Air/Oxygen/Nitrogen for Plasma) at the cutting table, with adequate manifold systems, cylinders or pipeline connections, and proper regulators (McLease offers regulators & hoses).
Compressed Air Supply: Clean, dry, and regulated compressed air (7-10 Bar) for plasma cutting and pneumatic controls (McLease offers Air Compressor & Air Dryer Units).
Dedicated Earthing Pit: A separate, dedicated industrial earthing pit or a robust industrial earthing system is critically required for the machine and its control panels. This ensures electrical safety for personnel and stability for sensitive electronic components.
8.3. Site Readiness & Civil Scope:
Machine Foundation: A perfectly level, reinforced concrete foundation (thickness and reinforcement as per our General Arrangement (GA) layout drawing) is crucial for machine stability and accuracy.
Site Preparation: Customer is responsible for preparing the site based on the General Arrangement (GA) layout drawings provided by McLease.
8.4. Material Handling & Support (Customer's Responsibilities):
Unloading & Positioning: Client must arrange and provide necessary tools, tackles, cranes, and forklifts for unloading and precise positioning.
Local Assistance: Provide local manpower (electricians, fitters, laborers) as required by McLease engineers during installation.
Accommodation: Client is requested to provide decent accommodation (lodging & boarding) for McLease's team.
8.5. Safety:
Site Safety: Client is responsible for ensuring a safe working environment and proper PPE for all personnel.
Fume Extraction: Client should ensure adequate fume extraction and ventilation systems are in place (McLease offers such systems) for a healthy work environment during operation.
Acquiring your PANUMA PRO from McLease.com is a streamlined process designed for your convenience:
Step 1: Online Inquiry & Order Booking (Approx. 1-2 Days)
Select Product: Browse
Add to Cart & Pay Security Deposit: Add the product to your cart. To confirm your serious intent and secure your order, you will pay a one-time, 10% refundable Order Booking Security Deposit (as listed next to monthly lease amount in pricing table). This deposit can be paid using various modes including Credit/Debit Cards, UPI, Online Bank Transfer (NEFT/RTGS), Wallets, Pay Later options, and even Cash on Dispatch (COD) for the final machine payment (terms apply).
Order Confirmation: You will receive an immediate confirmation and Order ID.
Step 2: Personalized Proposal & Agreement (Approx. 5-7 Days)
Consultation: A McLease expert will contact you within 24-48 hours of order booking. We will confirm final machine specifications, power needs, site conditions, and desired payment/lease terms.
Refined Proposal: Based on your inputs, we will prepare a precise Techno-Commercial Proposal.
Agreement Finalization: Upon your approval, a formal Lease Agreement or Purchase Order will be signed.
Step 3: Machine Manufacturing & Quality Check (Approx. 10-14 Weeks)
Manufacturing: Your PANUMA PRO will be manufactured by Technocrats Plasma Systems Ltd.
Quality Assurance: Rigorous quality checks are performed at various stages.
Customer Inspection: You will be invited to inspect the machine at our works before dispatch.
Step 4: Dispatch, Delivery & Final Payment / Lease Commencement (Approx. 1-2 Weeks)
Payment for Outright Purchase: If purchased outright, the balance payment is due after inspection (as per agreed terms in Section 7).
Lease Commencement: If on lease, the lease tenure officially commences, and the subscription product is activated in your online cart for monthly payments.
Dispatch & Transit: Machine is dispatched Ex-Factory, Vasai, Mumbai, and delivered to your site.
Step 5: Installation, Commissioning & Training (Approx. 1 Week)
On-site Setup: Our expert engineers will install and commission the PANUMA PRO at your facility.
Comprehensive Training: Your nominated personnel will receive thorough training on machine operation, multi-torch switching, basic maintenance, and software utilization for 4 days.
Go-Live: Your machine is ready for production!
Prices: All prices are Ex-Works Vasai, Mumbai, India. Prices are indicative estimates and subject to change based on final technical specifications and market conditions.
Additional Charges:
GST: Goods and Services Tax will be extra, as applicable, on all machine values, payments, and services.
Freight: Transportation charges will be at actuals and "To Pay" (customer pays directly at delivery).
Packaging, Forwarding, Insurance (PFI): A charge of 2% of the machine value will be extra.
Installation & Commissioning: Included in the price.
Order Confirmation Deposit: A one-time refundable security deposit (10% of monthly lease amount) is required at the time of online order booking. This deposit is 100% refundable as per the refund policy stated.
Refund Policy: This order confirmation fee is 100% refundable if the leasing documentation is not finalized/proceeded, or if the order is cancelled by McLease for any reason. For other cancellation reasons, standard website cancellation policies (
Leasing Approval: Finalization of lease is subject to McLease's credit assessment (based on repayment capacity/order back) and execution of a formal Lease Agreement.
Service & Spares Assurance: The 15-year assurance is provided by McLease as per the terms and conditions of a separate Service Assurance Agreement and/or AMC/RAMC contracts.
Warranty: The machine comes with a manufacturer's standard warranty, typically 12 months from the date of commissioning or 18 months from the date of dispatch, whichever is earlier. McLease facilitates warranty claims.
Machine Ownership (Lease): Legal title of the machine under a lease arrangement remains with McLease's financier or McLease, as specified in the Lease Agreement, until buy-back option is exercised.
Governing Law: This proposal and any resulting agreements shall be governed by the laws of India. Courts in Mumbai shall have exclusive jurisdiction.
McLease Contact: Website: shop.mclease.com Phone: +91-9029026000 Email: info@mclease.com
